LALIZAS LAR 36 Off-Load Release Hook – SOLAS/MED
LALIZAS LAR 36 Off-Load Release Hook – SOLAS/MED
Couldn't load pickup availability

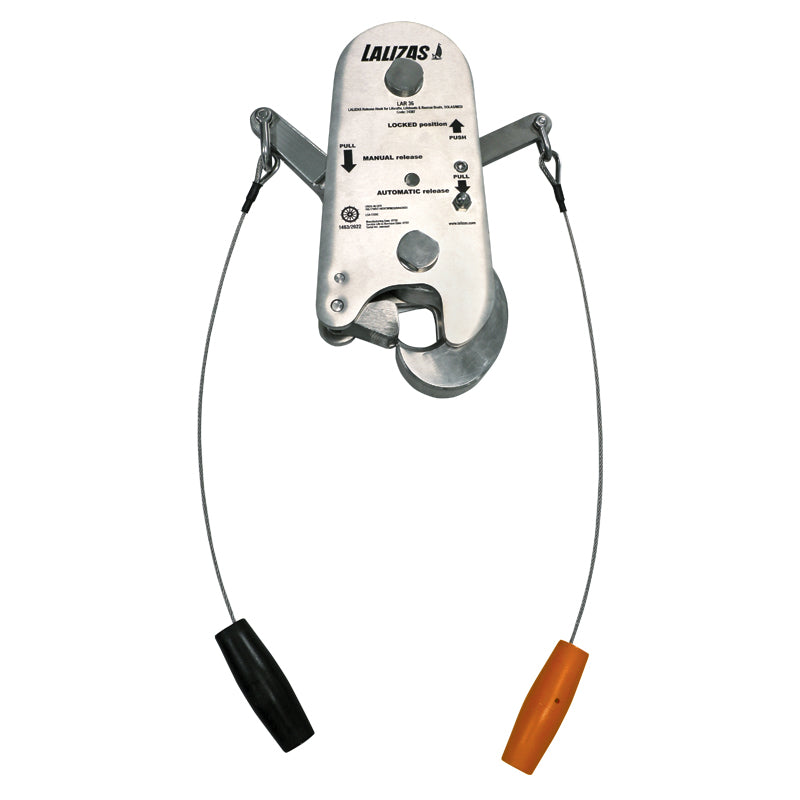

The LALIZAS LAR 36 is an off-load release hook designed for davit-launched life rafts and rescue boats. It combines automatic and manual release functions in one unit, allowing the craft to disconnect once it is waterborne and the load on the hook has sufficiently reduced.
Manufactured from 316 stainless steel, the LAR 36 offers high corrosion resistance and a safe working load of 36 kN, equivalent to approximately 3,670 kg.
Release modes
- Automatic release: Once the automatic mechanism has been activated before splashdown, the hook opens as the craft becomes waterborne and the remaining hook load falls to its release threshold of 5–30 kg (11–66 lb).
- Manual release: If towing, currents or sea conditions prevent automatic release, the operator can use the manual release lever once the craft is waterborne. The manufacturer specifies this mode for remaining hook loads greater than 30 kg and below approximately 150 kg.
For both modes, the automatic-release lever must be activated shortly before splashdown. Follow the manufacturer’s operating sequence.
Specifications
| Specification | Details |
|---|---|
| Manufacturer | LALIZAS |
| Model | LAR 36 |
| Product code | 74387 |
| Hook type | Off-load release hook |
| Operating modes | Automatic and manual |
| Safe working load | 36 kN — approximately 3,670 kg / 8,091 lb |
| Material | 316 stainless steel |
| Dimensions | 320 × 250 × 80 mm — approximately 12.6 × 9.8 × 3.1 in |
| Weight | 10 kg — approximately 22 lb |
Approvals
Tested and certified according to SOLAS/MED provisions and applicable Life-Saving Appliances (LSA) Code requirements.
U.S. recognition under the EU/U.S. Mutual Recognition Agreement is limited to use as an automatic release hook for davit-launched life rafts under 46 CFR 160.170.
Installation, operation, inspection and servicing must follow the manufacturer’s instructions.
